How to Measure a Boat for a Bimini Top

By John Funk, December 23, 2025

Time on the water should feel relaxing, yet extended sun exposure can turn a leisurely outing into an exhausting experience. That's where a boat bimini top comes in handy. This simple canvas canopy provides shade and protection from the elements, making your boating experience far more enjoyable. However, before you can start enjoying that shade, you need to figure out how to measure a boat for a bimini top correctly.

Getting the measurements right is crucial. Order a bimini top that's too small, and you'll be left with inadequate coverage. A top that’s too large can impact both function and appearance. The following steps will help ensure an accurate fit on your first attempt.

Understanding Bimini Top Basics

Before you begin taking measurements, it’s important to know exactly what they’re meant to determine. A bimini top consists of a fabric canopy supported by a folding aluminum or stainless steel frame.

The frame typically has two, three, or four bows (the curved tubes that run from side to side across your boat). Most modern tops fold down when not in use, which is why proper measurements matter so much — the collapsed frame needs to fit within your boat's dimensions.

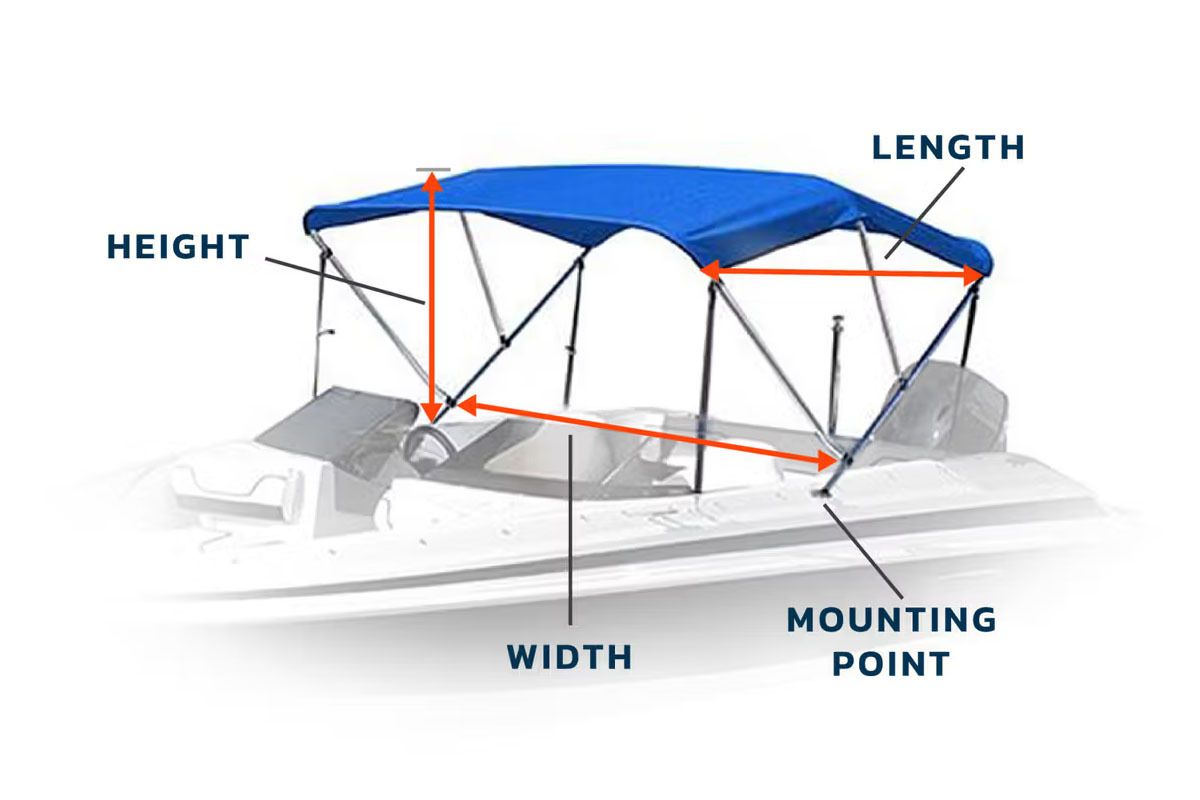

The Three Critical Bimini Top Measurements

Accurate bimini top sizing depends on three primary measurements: width, length, and height. These dimensions determine what size bimini top will fit your boat properly.

Width Measurement

Width is the measurement from gunwale to gunwale (the sides of your boat) where you plan to mount the bimini top. Follow these steps:

• Decide where you want the rear mounting points to be located on your boat
• Measure straight across from one mounting point to the other
• Measure at the inside of the rail or mounting surface, not the outside

Most manufacturers measure width at the widest point of the frame, so measure where the frame will actually sit. Standard bimini tops come in widths ranging from 54 inches to 96 inches, typically in 6-inch increments. When your measurement sits between two sizes, selecting the larger option usually offers improved coverage.

Length Measurement

Length refers to how far forward and backward the bimini top will extend over your boat. To measure length:

• Determine where you want the rear mounting bracket positioned
• Measure forward to where you want the front of the canopy to end when deployed
• This measurement should follow the curve of your boat, if applicable

Decide which sections you want covered. Do you need shade over the helm station, the entire cockpit, or just seating areas? Remember that the fabric will extend a few inches beyond the front bow, so factor that into your coverage planning.

Height Measurement

Height determines headroom and how much the bimini top will obstruct your view when deployed. Here's how to know what size bimini top height you need:

• Measure from the mounting surface straight up to where you want the top of the canvas
• Consider the height of the tallest person who will regularly use the boat
• Account for any clearance you need for electronics, antennas, or other equipment

Standard heights usually range from 36 inches to 54 inches. Taller is better for headroom, but remember that a higher bimini top catches more wind and may obstruct your view of trim tabs or other instruments if mounted behind the helm.

Taking Accurate Measurements

Now that you know the measurements required, it’s time to learn how to measure them accurately. You'll need a tape measure — a 25-foot cloth or metal tape works best.

• Get Help: Having a second person makes measuring much easier and more accurate. One person can hold the tape while the other records the measurements.
• Mark Your Mounting Points: Use painter's tape or a washable marker to indicate exactly where you plan to mount the hardware. This gives you consistent reference points.
• Measure Twice: The old carpenter's rule applies here as well. Double-check each measurement before ordering.
• Account for Boat Geometry: Boats aren't perfectly rectangular. Your boat's sides may not be parallel, or the deck might have a curve. Take measurements at multiple points and use the widest one for width and the longest one for length.

Special Considerations

Existing Hardware

If you're replacing an existing bimini top, measure the old frame rather than the boat. The previous owner already figured out what fits. Measure the width at the frame’s widest section, the length between the front and rear mounting points, and the height from the deck up to the highest point when the frame is fully extended.

Mounting Location

Think carefully about where you'll mount your bimini top. It’s usually positioned just behind the helm, though you may place it farther back if you have a center console or a unique seating layout. The mounting location affects all your measurements, so decide this first.

Folded Clearance

When folded down, your bimini top needs to clear any seats, consoles, or equipment behind the mounting point. Measure the available space when planning your installation.

Choosing the Best Bimini Tops

Once you have your measurements, you can shop for the best bimini tops that fit your boat. Look for features like:

• Quality Materials: Solution-dyed acrylic or polyester fabric resists fading and mildew
• Sturdy Frame: Stainless steel or powder-coated aluminum for marine environments
• Adjustable Height: Some tops offer multiple height positions
• Quick Release Hardware: Makes removal easier for storage or maintenance
• Boot Cover: Protects the folded canvas when not in use

Common Measuring Mistakes to Avoid

Even the best planning can leave room for errors. The most common mistakes include:

• Measuring to the Outside of Rails or Hardware: Always measure to the inside mounting surface.
• Forgetting About Obstructions: Check for cleats, rod holders, or other hardware that might interfere with the frame.
• Not Considering Canvas Overhang: The fabric extends beyond the frame, so plan accordingly.
• Ignoring Beam Angle: Some boats have a significant deck angle, which affects how the bimini top sits.

Ready to Order? Here's What to Remember

Learning how to measure a boat for a bimini top isn't complicated, but it does require attention to detail. Move slowly, double-check your measurements, and think about how you use your boat in real conditions. A properly sized bimini top transforms your boating experience, providing welcome shade on hot days and shelter from light rain.

If you’re dealing with irregular measurements or an uncommon boat layout, the manufacturer can help clarify the details. Most companies have customer service teams experienced in helping boat owners select the right size. Some even offer custom fabrication if standard sizes don't quite fit your needs.

With accurate bimini top measurements in hand, you're ready to order the perfect shade solution for your boat. Soon you'll be cruising comfortably, protected from the sun and enjoying your time on the water even more.

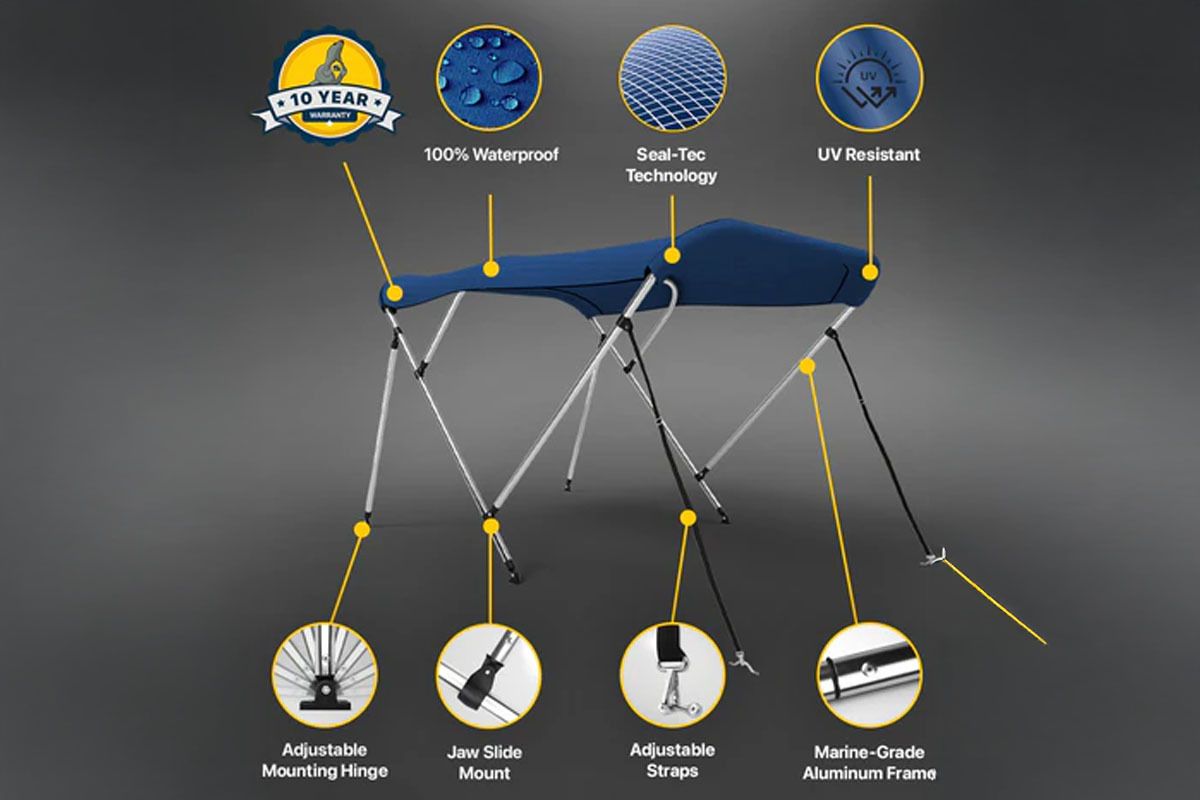

Why Choose Seal Skin Covers?

When it comes to protecting your boat with a quality bimini top, Seal Skin Covers stands out as a trusted choice for boaters. With years of experience in marine canvas and cover manufacturing, we understand what it takes to create products that withstand the harsh marine environment.

Seal Skin Covers bimini tops come with features designed specifically for demanding marine conditions:

• Multiple Layers of Protection: Advanced fabric construction provides superior durability and longevity compared to single-layer alternatives.
• Maximum UV Protection: The fabric blocks harmful UV rays, protecting both you and your boat's interior from sun damage and fading.
• Waterproof Performance: Engineered to keep you dry during unexpected rain showers while maintaining excellent water resistance over time.
• Breathable Materials: Unlike cheaper alternatives, the fabric allows air circulation to prevent heat buildup and condensation underneath the canopy.
• Semi-Custom Fit Option: This innovative approach offers a more affordable alternative to fully custom tops while delivering equally effective coverage. You get a tailored fit based on your measurements without the premium price tag.

What sets Seal Skin Covers apart is our commitment to customer service. Our experienced specialists can guide you through accurate measurements, advise on fabric options, and recommend solutions that align with your requirements and budget. With an understanding that no two boats are the same, we approach both standard and semi-custom orders with equal attention to detail.

Our products are not just reasonably priced, but we will also ship your order right to your doorstep at no additional cost, without any delay. We offer a full 30-day money-back guarantee and a 10-year manufacturer’s warranty with every purchase.

You can call us at 800-915-0038 during our office hours (Monday to Friday from 9:00 AM

to 5:00 PM EST), and we will help you find the perfect bimini top that fits your needs and budget. We will also help you if you have any questions about our products, shipping policies, and exchange/refund policies.
